技術特性表
|
允許工作壓力PN |
罐內≤0.37Mpa |
|
允許工作溫度 |
罐內0-200℃ |
|
允許攪拌轉速 |
錨式、框式63、80r/min |
|
攪拌軸為填料密封時罐內工作壓力不超過0.25Mpa |
|

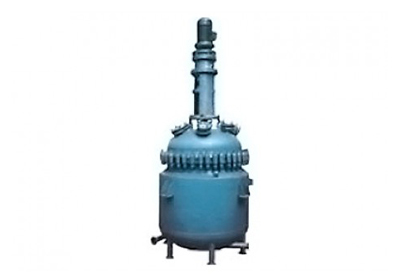

電加熱反應罐(79標表1)
|
代 號 |
公 稱 容 積(L) |
||||||
|
50 |
100 |
200 |
300 |
500 |
1000 |
||
|
DN |
500 |
600 |
700 |
800 |
900 |
1200 |
|
|
DO |
350 |
420 |
490 |
560 |
630 |
840 |
|
|
D1 |
600 |
700 |
800 |
900 |
1000 |
1300 |
|
|
D2 |
706 |
816 |
930 |
1106 |
1156 |
1488 |
|
|
D3 |
25 |
25 |
25 |
25 |
25 |
30 |
|
|
D4 |
32×4 |
32×4 |
32×4 |
32×4 |
32×4 |
65×5 |
|
|
D5 |
270 |
270 |
300 |
350 |
350 |
65×5 |
|
|
D6 |
- |
- |
- |
- |
- |
1120 |
|
|
H |
465 |
565 |
775 |
875 |
1075 |
1275 |
|
|
H1 |
300 |
300 |
350 |
350 |
400 |
500 |
|
|
H2 |
265 |
300 |
355 |
385 |
415 |
500 |
|
|
H3 |
250 |
250 |
250 |
250 |
270 |
315 |
|
|
H4 |
- |
- |
- |
- |
- |
- |
|
|
H5 |
- |
- |
- |
- |
- |
- |
|
|
H6 |
220 |
220 |
230 |
240 |
270 |
270 |
|
|
H7 |
945 |
945 |
953 |
1154 |
1154 |
1276 |
|
|
L |
2030 |
2170 |
2430 |
2782 |
3040 |
3470 |
|
|
h |
漿式/葉輪式 |
95 |
100 |
105 |
125 |
165 |
180 |
|
錨式/框式 |
45/- |
60/- |
45/- |
45/- |
85/- |
-/85 |
|
|
卡子 |
0.2Mpa |
BM16/28 |
BM16/28 |
BM16/36 |
BM16/40 |
BM20/32 |
BM20/52 |
|
0.4Mpa |
BM16/28 |
BM16/32 |
BM16/40 |
BM16/48 |
BM20/36 |
BM20/56 |
|
|
減速機型號 |
BLDO.8-1-I |
BLDO.8-1-I |
BLD-1.1-1-I |
BLD-3.0-3-I |
BLD-3.0 -3-I |
BLD4-3-I |
|
|
放料閥規格 |
70/32 |
70/32 |
80/40 |
80/40 |
80/40 |
100/50 |
|
|
電機功率 |
0.8 |
0.8 |
1.1 |
3 |
3 |
4 |
|
|
實際容積(W) |
71 |
128 |
247 |
389 |
588 |
1250 |
|
|
傳熱面積(Mz) |
0.34 |
0.66 |
1.26 |
1.75 |
2.64 |
4.54 |
|
|
設備總重(Kg) |
477 |
548 |
706 |
765 |
1030 |
1690 |
|
電加熱反應罐(79標表2)
|
代 號 |
公 稱 容 積 (L) |
||||||
|
1500 |
2000 |
3000 |
5000(B) |
5000(A) |
6300 |
||
|
DN |
1300 |
1300 |
1600 |
1600 |
1750 |
1750 |
|
|
DO |
910 |
910 |
1120 |
1120 |
1200 |
1200 |
|
|
D1 |
1450 |
1450 |
1750 |
1750 |
1900 |
1900 |
|
|
D2 |
1679 |
1679 |
2029 |
2029 |
2188 |
2188 |
|
|
D3 |
30 |
30 |
36 |
36 |
36 |
36 |
|
|
D4 |
65×5 |
65×5 |
65×6 |
65×8 |
80×6 |
80×6 |
|
|
D5 |
400 |
400 |
450 |
450 |
450 |
450 |
|
|
D6 |
1270 |
1270 |
1550 |
1550 |
1680 |
1680 |
|
|
H |
1475 |
1820 |
1820 |
2780 |
2580 |
3100 |
|
|
H1 |
600 |
600 |
700 |
800 |
700 |
740 |
|
|
H2 |
510 |
510 |
580 |
580 |
622.5 |
637 |
|
|
H3 |
507 |
507 |
614 |
614 |
550 |
550 |
|
|
H4 |
315 |
315 |
315 |
315 |
350 |
350 |
|
|
H5 |
330 |
330 |
330 |
330 |
370 |
370 |
|
|
H6 |
1000 |
1335 |
1247 |
1750 |
1530 |
1760 |
|
|
H7 |
1276 |
1276 |
1316 |
1316 |
1316 |
1361 |
|
|
L |
3695 |
4035 |
4225 |
5185 |
5030 |
5261 |
|
|
h |
漿式/葉輪式 |
165 |
175 |
190 |
190 |
190 |
190 |
|
錨式/框式 |
-/115 |
-/125 |
-/144 |
-/144 |
-/190 |
-/190 |
|
|
卡子 |
0.2Mpa |
BM20/56 |
BM20/56 |
BM20/52 |
BM20/52 |
BM24/60 |
BM24/60 |
|
0.4Mpa |
BM20/64 |
BM20/64 |
BM24/60 |
BM24/60 |
BM24/68 |
BM24/68 |
|
|
減速機型號 |
BLD4-3-I |
BLD4-3-I |
BLD5.5-3-I |
BLD5.5-3-I |
BLD5.5-3-I |
BLD7.5-3-I |
|
|
放料閥規格 |
100/50 |
100/50 |
125/80 |
125/80 |
125/80 |
125/80 |
|
|
電機功率(W) |
4 |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
|
|
實際容積(W) |
1720 |
2160 |
3715 |
5650 |
5650 |
7000 |
|
|
傳熱面積(M2) |
5.34 |
7.02 |
8.61 |
13.8 |
13.8 |
16.4 |
|
|
設備總重(Kg) |
2160 |
2410 |
3450 |
4470 |
5032 |
5978 |
|
電加熱反應罐(93標表1)
|
代 號 |
公 稱 容 積 (L) |
|||||||
|
50 |
100 |
200 |
300 |
500 |
1000 |
1500 |
||
|
DN |
500 |
600 |
700 |
800 |
900 |
1200 |
1300 |
|
|
DO |
350 |
420 |
490 |
560 |
630 |
840 |
910 |
|
|
D1 |
600 |
700 |
800 |
900 |
1000 |
1300 |
1450 |
|
|
D2 |
726 |
828 |
930 |
1027 |
1152 |
1485 |
1679 |
|
|
D3 |
25 |
25 |
25 |
25 |
25 |
30(25) |
30(30) |
|
|
D4 |
32×4 |
32×4 |
32×4 |
32×4 |
32×4 |
65×5 |
65×5 |
|
|
D5 |
270 |
270 |
300 |
350 |
350 |
400 |
400 |
|
|
D6 |
- |
- |
- |
- |
- |
950 |
1100 |
|
|
H |
465 |
565 |
775 |
875 |
1075 |
1275 |
1475 |
|
|
H1 |
310 |
310 |
350 |
350 |
400 |
500 |
600 |
|
|
H2 |
265 |
300 |
355 |
385 |
415 |
500 |
530 |
|
|
H3 |
- |
- |
- |
- |
- |
- |
507 |
|
|
H4 |
250 |
250 |
250 |
250 |
270 |
315 |
315 |
|
|
H5 |
220 |
220 |
230 |
240 |
270 |
280 |
330 |
|
|
H6 |
- |
- |
- |
- |
- |
- |
1000 |
|
|
H7 |
945 |
945 |
953 |
1154 |
1200 |
1276 |
1276 |
|
|
L |
2030 |
2170 |
2426 |
2782 |
3040 |
3470 |
3695 |
|
|
h |
錨式及框式 |
45 |
60 |
60 |
85 |
80 |
100 |
110 |
|
漿式及葉輪式 |
90 |
110 |
130 |
150 |
160 |
210 |
210 |
|
|
卡子 |
0.25Mpa |
BM16/16 |
BM16/28 |
BM16/36 |
BM16/40 |
BM20/36 |
BM20/52 |
BM20/56 |
|
0.6Mpa |
BM16/28 |
BM16/36 |
BM16/41 |
BM16/48 |
BM20/40 |
BM20/56 |
BM20/70 |
|
|
減速機型號 |
BLD-12 |
BLD-12 |
BLD-15 |
BLD-18 |
BLD-18 |
BLD-18 |
BLD-18 |
|
|
放料閥規格 |
65/32 |
65/32 |
80/40 |
80/40 |
80/40 |
100/50 |
100/50 |
|
|
電機功率(W) |
0.8 |
0.8 |
1.1 |
3 |
3 |
4 |
4 |
|
|
實際容積(W) |
71 |
128 |
247 |
389 |
588 |
1250 |
1720 |
|
|
傳熱面積(M2) |
0.34 |
0.66 |
1.26 |
1.75 |
2.64 |
4.54 |
5.34 |
|
|
設備總重(Kg) |
440 |
482 |
707 |
765 |
1030 |
1690 |
2160 |
|
電加熱反應罐(93標表2)
|
代 號 |
公 稱 容 積 (L) |
||||||||
|
2000 |
3000 |
5000(A) |
5000(B) |
6300 |
8000 |
10000(A) |
10000(B) |
||
|
DN |
1300 |
1600 |
1600 |
1750 |
1750 |
2000 |
2000 |
2200 |
|
|
DO |
910 |
1120 |
1120 |
1200 |
1200 |
1400 |
1400 |
1640 |
|
|
D1 |
1450 |
1750 |
1750 |
1900 |
1900 |
2200 |
2200 |
2400 |
|
|
D2 |
1679 |
2029 |
2045 |
2180 |
2180 |
2500 |
2533 |
2738 |
|
|
D3 |
30(30) |
36(30) |
36(30) |
36(30) |
36(30) |
36(36) |
36(36) |
36(36) |
|
|
D4 |
65×5 |
65×6 |
65×8 |
80×6 |
80×6 |
95×8 |
95×8 |
95×8 |
|
|
D5 |
400 |
450 |
450 |
450 |
450 |
500 |
550 |
550 |
|
|
D6 |
1100 |
1300 |
1300 |
1400 |
1400 |
1600 |
1600 |
1800 |
|
|
H |
1820 |
1820 |
2780 |
2575 |
3100 |
3120 |
3780 |
3060 |
|
|
H1 |
600 |
700 |
800 |
700 |
740 |
700 |
780 |
800 |
|
|
H2 |
530 |
610 |
610 |
640 |
640 |
720 |
730 |
760 |
|
|
H3 |
507 |
614 |
615 |
550 |
550 |
550 |
550 |
550 |
|
|
H4 |
315 |
315 |
315 |
350 |
350 |
350 |
400 |
470 |
|
|
H5 |
330 |
330 |
330 |
370 |
370 |
420 |
450 |
400 |
|
|
H6 |
1335 |
1247 |
1750 |
1530 |
1760 |
1880 |
2810 |
2180 |
|
|
H7 |
1276 |
1316 |
1316 |
1316 |
1451 |
1650 |
2600 |
2600 |
|
|
L |
4035 |
4225 |
5185 |
5030 |
5260 |
5450 |
7040 |
7075 |
|
|
h |
錨式及框式 |
110 |
140 |
140 |
130 |
190 |
150 |
||
|
漿式及葉輪式 |
210 |
240 |
240 |
270 |
270 |
330 |
330 |
- |
|
|
卡子 |
0.25Mpa |
BM20/56 |
BM24/60 |
BM24/60 |
BM24/68 |
BM24/68 |
BM24/76 |
BM24/70 |
BM24/84 |
|
0.6Mpa |
BM20/70 |
BM24/68 |
BM24/68 |
BM24/76 |
BM24/76 |
BM24/84 |
BM24/84 |
BM24/96 |
|
|
減速機型號 |
BLD-18 |
BLD-22 |
BLD-22 |
BLD-22 |
BLD-27 |
BLD-27 |
BLD-33 |
BLD-33 |
|
|
放料閥規格 |
100/50 |
125/80 |
125/80 |
125/80 |
125/80 |
125/80 |
150/100 |
150/100 |
|
|
電機功率(W) |
4 |
5.5 |
5.5 |
5.5 |
7.5(5.5) |
11(7.5) |
11(15) |
11(15) |
|
|
實際容積(W) |
2160 |
3715 |
5650 |
5650 |
7000 |
9310 |
11000 |
12320 |
|
|
傳熱面積(M2) |
7.02 |
8.61 |
13.8 |
13.8 |
16.4 |
16.88 |
26 |
20.7 |
|
|
設備總重(Kg) |
2410 |
3450 |
4470 |
4870 |
5590 |
7920 |
8920 |
10680 |
|
